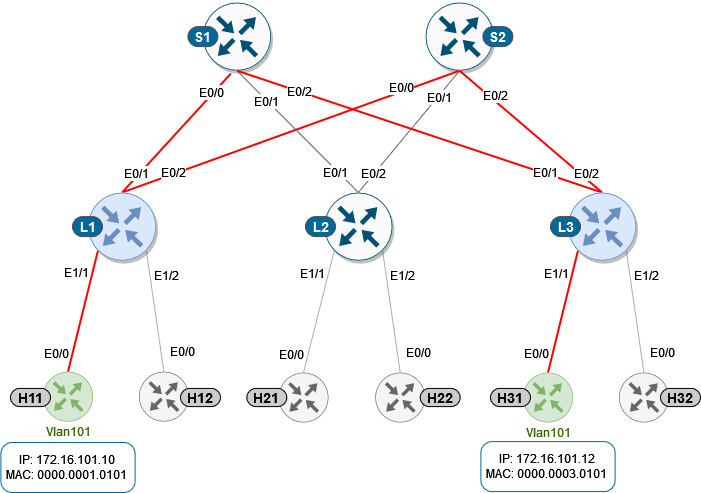

Task TS02: H11(172.16.101.10) cannot ping H31(172.16.101.12)¶
Note
To get started, please select in lab manager option 05 to initialize lab devices. Please wait a minute after lab starts for network convergence.
H11 node
1ts02-H11#ping 172.16.101.12
2Type escape sequence to abort.
3Sending 5, 100-byte ICMP Echos to 172.16.101.12, timeout is 2 seconds:
4.....
5Success rate is 0 percent (0/5)
6
7ts02-H11#ping 172.16.101.1
8Type escape sequence to abort.
9Sending 5, 100-byte ICMP Echos to 172.16.101.1, timeout is 2 seconds:
10!!!!!
11Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
We can see that NVE peering looks fine on Leaf1.
L1 node
1ts02-L1#show nve peer
2'M' - MAC entry download flag 'A' - Adjacency download flag
3'4' - IPv4 flag '6' - IPv6 flag
4
5Interface VNI Type Peer-IP RMAC/Num_RTs eVNI state flags UP time
6nve1 50901 L3CP 10.1.254.4 aabb.cc80.0400 50901 UP A/M/4 01:13:48
7nve1 10101 L2CP 10.1.254.4 5 10101 UP N/A 01:13:48
8nve1 10101 L2CP 10.1.254.6 3 10101 UP N/A 01:13:48
9nve1 10101 L2CP 10.1.254.7 3 10101 UP N/A 01:13:48
10nve1 10102 L2CP 10.1.254.4 4 10102 UP N/A 01:13:48
11nve1 10102 L2CP 10.1.254.6 2 10102 UP N/A 01:13:48
12nve1 10102 L2CP 10.1.254.7 2 10102 UP N/A 01:13:48
BGP is up as well and receives prefixes from neighbors.
1ts02-L1#show bgp l2vpn evpn summary
2BGP router identifier 10.1.255.3, local AS number 65001
3
4Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
510.1.255.1 4 65001 23 10 44 0 0 00:01:31 13
610.1.255.2 4 65001 23 9 44 0 0 00:01:26 13
7
8ts02-L1#show l2route evpn mac ip topology 101
9 EVI ETag Prod Mac Address Host IP Next Hop(s)
10----- ---------- ----- -------------- --------------- --------------------------
11 101 0 L2VPN 0000.0001.0101 172.16.101.10 Et0/0:101
12 101 0 BGP 0000.0002.0101 172.16.101.11 V:10101 10.1.254.4
13 101 0 L2VPN aabb.cc80.0300 172.16.101.1 Vl101:0
14 101 0 BGP aabb.cc80.0400 172.16.101.1 V:10101 10.1.254.4
15 101 0 BGP aabb.cc80.0600 172.16.101.1 V:10101 10.1.254.6
16 101 0 BGP aabb.cc80.0700 172.16.101.1 V:10101 10.1.254.6
We see, however, that 172.16.101.12 prefix is not present in the list of the EVPN MAC/IP info.
Lets check if we have this route in BGP table – the output below confirms that such route is not present, MAC for the destination host is 0000.0003.0101.
1ts02-L1#show bgp l2vpn evpn route-type 2 0 000000030101 172.16.101.12
2% Network not in table
Is it present on RRs (spines)?
S1 node
1ts02-S1#show bgp l2vpn evpn route-type 2 0 000000030101 172.16.101.12
2BGP routing table entry for [2][10.1.255.5:101][0][48][000000030101][32][172.16.101.12]/24, version 15
3Paths: (1 available, best #1, table EVPN-BGP-Table)
4Advertised to update-groups:
5 2
6Refresh Epoch 1
7Local
8 10.1.254.5 (metric 11) (via default) from 10.1.255.5 (10.1.255.5)
9 Origin incomplete, metric 0, localpref 100, valid, internal, best
10 EVPN ESI: 00000000000000000000, Label1 10101, Label2 50901
11 Extended Community: RT:10:10 RT:65001:101 ENCAP:8
12 Router MAC:AABB.CC80.0500
13 rx pathid: 0, tx pathid: 0x0
14 Updated on May 17 2023 12:31:29 CET
Note
The update-group might be different in your lab!
Route is present and is being advertised to the BGP update-group (note the group number in the output above). Lets see which routers are part of it.
1ts02-S1#sh bgp l2vpn evpn update-group 2
2BGP version 4 update-group 2, internal, Address Family: L2VPN E-VPN
3BGP Update version : 40/0, messages 0, active RGs: 1
4Route-Reflector Client
5Community attribute sent to this neighbor
6Extended-community attribute sent to this neighbor
7Topology: global, highest version: 40, tail marker: 40
8Format state: Current working (OK, last not in list)
9 Refresh blocked (not in list, last not in list)
10Update messages formatted 37, replicated 111, current 0, refresh 0, limit 1000, mss 1460, SSO is disabled
11Number of NLRIs in the update sent: max 1, min 0
12Minimum time between advertisement runs is 0 seconds
13Has 3 members:
1410.1.255.4 10.1.255.6 10.1.255.7
Looking into the update-group members, peer 10.1.255.3 is not part of it.
To identify the reason for this issue, we will check the BGP config for problem and working neighbors.
1ts02-S1#show bgp l2vpn evpn neighbors 10.1.255.3 | begin L2VPN E-VPN
2For address family: L2VPN E-VPN
3Session: 10.1.255.3
4BGP table version 62, neighbor version 62/0
5Output queue size : 0
6Index 2, Advertise bit 1
72 update-group member
8Community attribute sent to this neighbor
9Extended-community attribute sent to this neighbor
10Slow-peer detection is disabled
11Slow-peer split-update-group dynamic is disabled
12Prefers VxLAN if VTEP is UP else MPLS
13<...skip...>
14
15ts02-S1#show bgp l2vpn evpn neighbors 10.1.255.4 | begin L2VPN E-VPN
16For address family: L2VPN E-VPN
17Session: 10.1.255.4
18BGP table version 62, neighbor version 62/0
19Output queue size : 0
20Index 1, Advertise bit 0
21Route-Reflector Client
221 update-group member
23Community attribute sent to this neighbor
24Extended-community attribute sent to this neighbor
25Slow-peer detection is disabled
26Slow-peer split-update-group dynamic is disabled
27Prefers VxLAN if VTEP is UP else MPLS
28<...skip....>
Looks like route-reflector-client command is missing for the 10.1.255.3 neighbor. That configuration command is required since S1 node is acting as a Spine in the EVPN fabric.
Lets also verify neighbor 10.1.255.5. We can see that this neighbor is not route reflector client either.
1ts02-S1#sh bgp l2vpn evpn neighbors 10.1.255.5 | beg L2VPN E-VPN
2For address family: L2VPN E-VPN
3Session: 10.1.255.5
4BGP table version 40, neighbor version 40/0
5Output queue size : 0
6Index 1, Advertise bit 0
71 update-group member
8Community attribute sent to this neighbor
9Extended-community attribute sent to this neighbor
10Slow-peer detection is disabled
11Slow-peer split-update-group dynamic is disabled
12Prefers VxLAN if VTEP is UP else MPLS
13<...skip....>
Similarly, such configuration is missing on S2 node too.
S2 node
1ts02-S2#show bgp l2vpn evpn neighbors 10.1.255.3 | begin L2VPN E-VPN
2For address family: L2VPN E-VPN
3Session: 10.1.255.3
4BGP table version 101, neighbor version 101/0
5Output queue size : 0
6Index 1, Advertise bit 0
71 update-group member
8Community attribute sent to this neighbor
9Extended-community attribute sent to this neighbor
10Slow-peer detection is disabled
11Slow-peer split-update-group dynamic is disabled
12Prefers VxLAN if VTEP is UP else MPLS
13<...skip....>
14
15ts02-S2#sh bgp l2vpn evpn neighbors 10.1.255.5 | beg L2VPN E-VPN
16For address family: L2VPN E-VPN
17Session: 10.1.255.5
18BGP table version 40, neighbor version 40/0
19Output queue size : 0
20Index 2, Advertise bit 1
212 update-group member
22Community attribute sent to this neighbor
23Extended-community attribute sent to this neighbor
24Slow-peer detection is disabled
25Slow-peer split-update-group dynamic is disabled
26Prefers VxLAN if VTEP is UP else MPLS
27<...skip....>
Lets fix it on S1 and S2 nodes (make sure to do it on both Spines).
S1/S2 nodes
1conf t
2 router bgp 65001
3 address-family l2vpn evpn
4 neighbor 10.1.255.3 route-reflector-client
5 neighbor 10.1.255.5 route-reflector-client
After that we will see 172.16.101.12 in l2route table of Leaf1.
L1 node
1ts02-L1#show l2route evpn mac ip topology 101
2 EVI ETag Prod Mac Address Host IP Next Hop(s)
3----- ---------- ----- -------------- --------------- --------------------------
4 101 0 L2VPN 0000.0001.0101 172.16.101.10 Et0/0:101
5 101 0 BGP 0000.0002.0101 172.16.101.11 V:10101 10.1.254.4
6 101 0 BGP 0000.0003.0101 172.16.101.12 V:10101 10.1.254.5
7 101 0 L2VPN aabb.cc80.0300 172.16.101.1 Vl101:0
8 101 0 BGP aabb.cc80.0400 172.16.101.1 V:10101 10.1.254.4
9 101 0 BGP aabb.cc80.0500 172.16.101.1 V:10101 10.1.254.5
10 101 0 BGP aabb.cc80.0600 172.16.101.1 V:10101 10.1.254.6
11 101 0 BGP aabb.cc80.0700 172.16.101.1 V:10101 10.1.254.7
Lets try to ping from H11 to verify.
H11 node
1ts02-H11#ping 172.16.101.12
2Type escape sequence to abort.
3Sending 5, 100-byte ICMP Echos to 172.16.101.12, timeout is 2 seconds:
4!!!!!
5Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
